UL 1015 Flexible Single Core 12AWG Building Wire with KST FRD5.5-195 KST MPD5.5-195 Male Female Bullet Crimp Custom Wiring Harness Assembly To Tinned Cable End

  • MOQ: 50pcs.
  • Sample Time: 3-5 Days, Free with freight collected.
  • Production Time: 10-15 days depends on order QTY.
  • Price Terms: FOB, EXW, CIF, C&F, DDP etc.
  • Shipping Terms: By Sea, Air, Express, door to door service.
  • Payment Terms: Wire Transfer, PayPal, Credit Card.
  • Packing: Polybag, Master Export Cartons, Pallets, or Custom.

UL 12AWG Wiring Harness Assembly

  • Brand Name: Superline

  • Model Number: 12AWG Wiring Harness

  • Approvals: UL

  • Type: Cable Harness

  • Application: Industrial, Appliances, Dvices

  • Male End Type: KST MPD5.5-195 Male bullet, 5.5mm, 12-10 AWG

  • Female End Type: KST FRD5.5-195 Female Bullet, 5.5mm, 12-10 AWG

  • Cable type: UL 1015 12AWG

  • Conductor: Stranded Tinned Copper

  • Plug: KST MPD5.5-195 Male Bullet, KST FRD5.5-195 Female Bullet Crimp

  • Terminal Material:  Nylon, PVC, PE, etc.

  • Blade Material: Nickel coated Brass

  • Cable Ends: Tinned, Peeling off, ROJ, Stripped, Terminals, or custom

  • Insulation: PVC, Rubber, TPE, XLPE, Textile

  • Color: Blue, Yellow, Green, Black, Red, other colors available for options

  • Length: any length can be customized

  • Rated Current & Voltage: 20A, 125V~

  • Environmental Certifications: RoHS, REACH, PAHS

  • Quality System: ISO9001:2015

5PCS Wiring Harness Kit

4 * KST FRD5.5-195 Female Bullet Crimp to Tinned End Electrical Wiring Harness

1 * KST MPD5.5-195 Male Bullet to Tinned End Power Wire Assembly

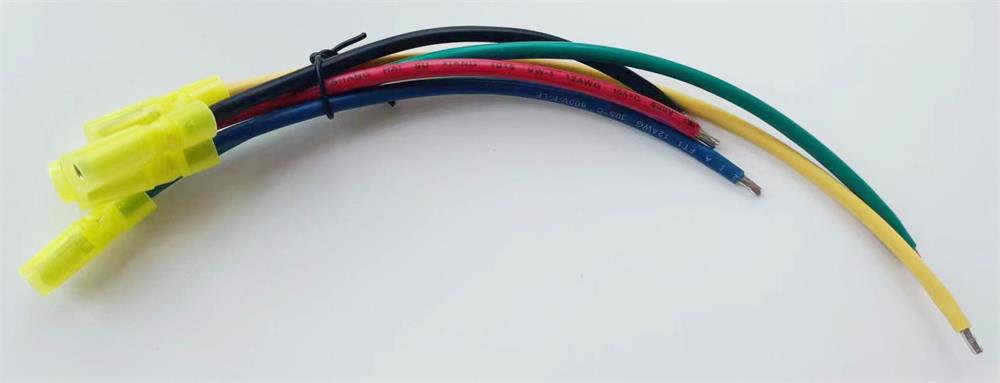

12AWG 5PCS Harness Kit

Product Name

UL Listed Wiring Harness


Wiring Harness

Brand Name



12AWG Wire Harness Assembly


Stranded Tinned Copper


environmental-friendly PVC, Rubber etc.


4 * KST FRD5.5-195 Female Bullet Crimp

1 * KST MPD5.5-195 Male Bullet

Cable end

Tinned, Stripped, ROJ, with O ring terminals, or customized

Cable type

UL1015, UL1007, UL1569, UL1061, TXL

10AWG, 12AWG, 14AWG 16AWG, 18AWG, 20AWG, 24AWG, 26AWG


Blue, Yellow, Green, Black, Red, other colors available for options

Rated Current&Voltage

20A 125V


143mm-225mm, can custom as per drawing


Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Flamability Rating:

UL 94V-0

Temperature Rating:

Terminal Connector: 120°C

Electrical Wire: 105°C


Household, Commercial, Industrial Applications, Devices, Appliances

Applicable Country

USA, Canada, Mexico, Central America, Malaysia, Philippines, Worldwidely





This Wiring Harness Kit is customized for client. The wire length is produces as per the datasheet. The color of hook-up wire is Blue, Yellow, Green, Black, Red, other colors such as White, Orange, Purple, Grey, Brwon, Yellow & Green are also available, or can custom color for clients. The wire for the harness kit is UL1015, other electrical wire UL1007, UL1569, UL1061, TXL etc. are also available. The cable gauge is 12AWG, we also can do 10AWG, 14AWG, 16AWG, 18AWG, 20AWG, 24AWG, 26AWG etc.

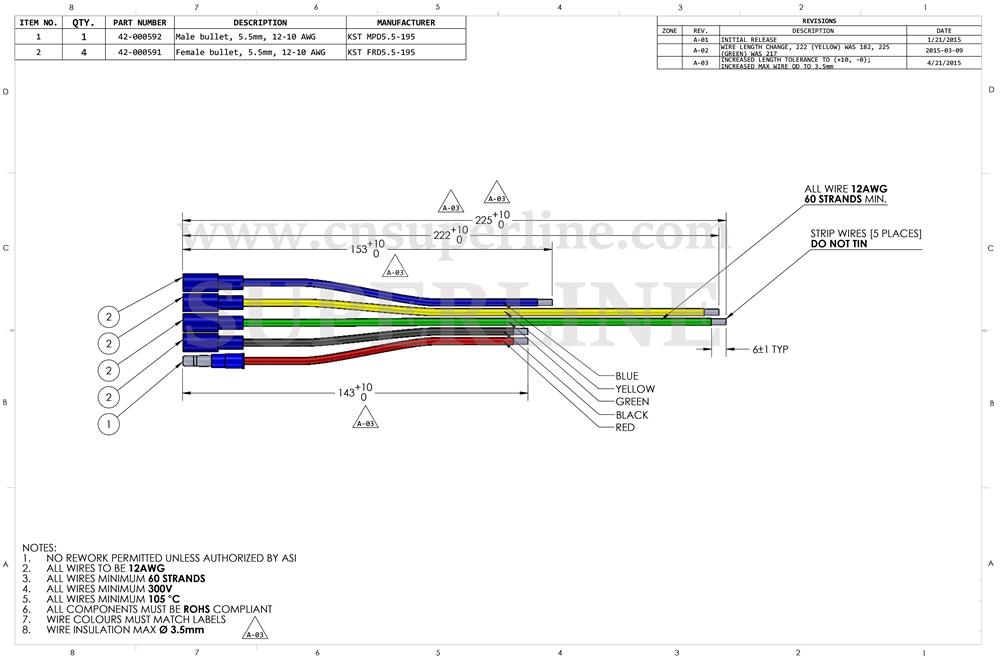

Below is datasheet for the 12AWG Wiring Harness Kits

12AWG Wire Harness datasheet

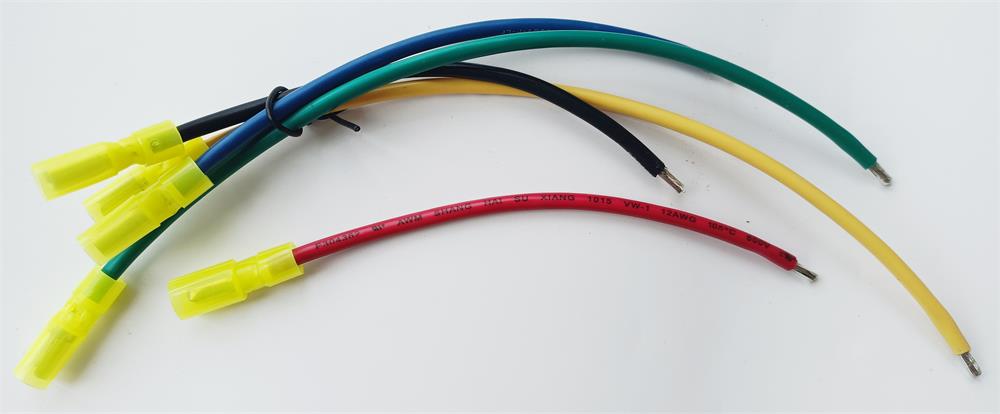

Below is UL 12AWG markings on cable.

12AWG Mark on Cable

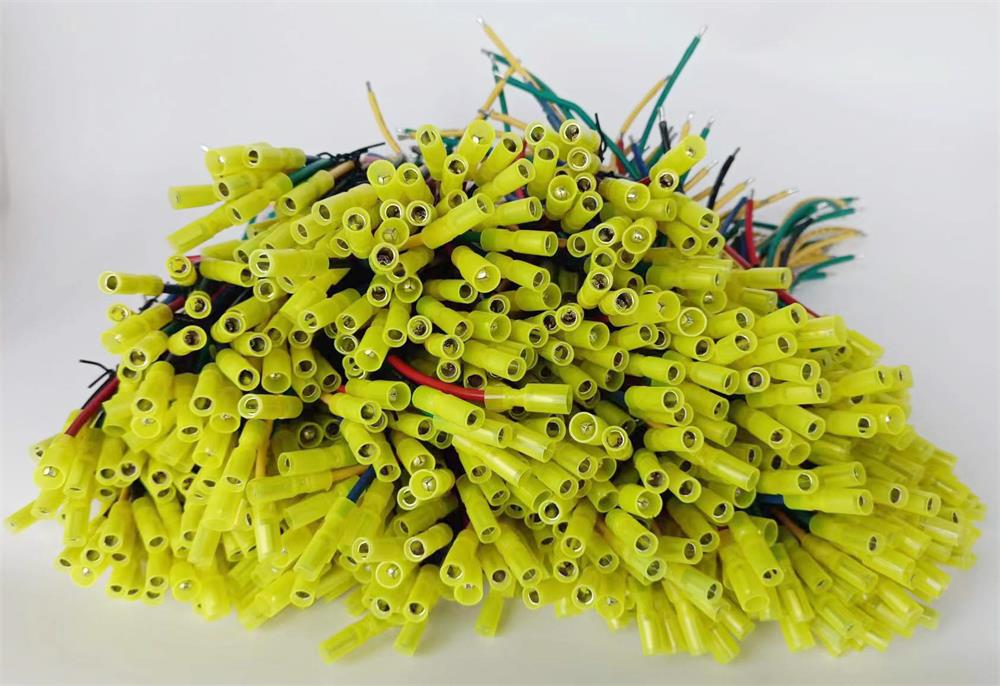

KST FRD5.5-195 MPD5.5-195 Connectors

Available Opposite End

Normal Stripped, Splitter and ROJ, Tinned, Bootlace etc.

12AWG Harness Assembly

Suplerline focuses on the high-quality production of Wire Harness Assembly, Cable Assembly.

Cable type, color, cable end can be custom.


Tinned end 12AWG Wire Harness

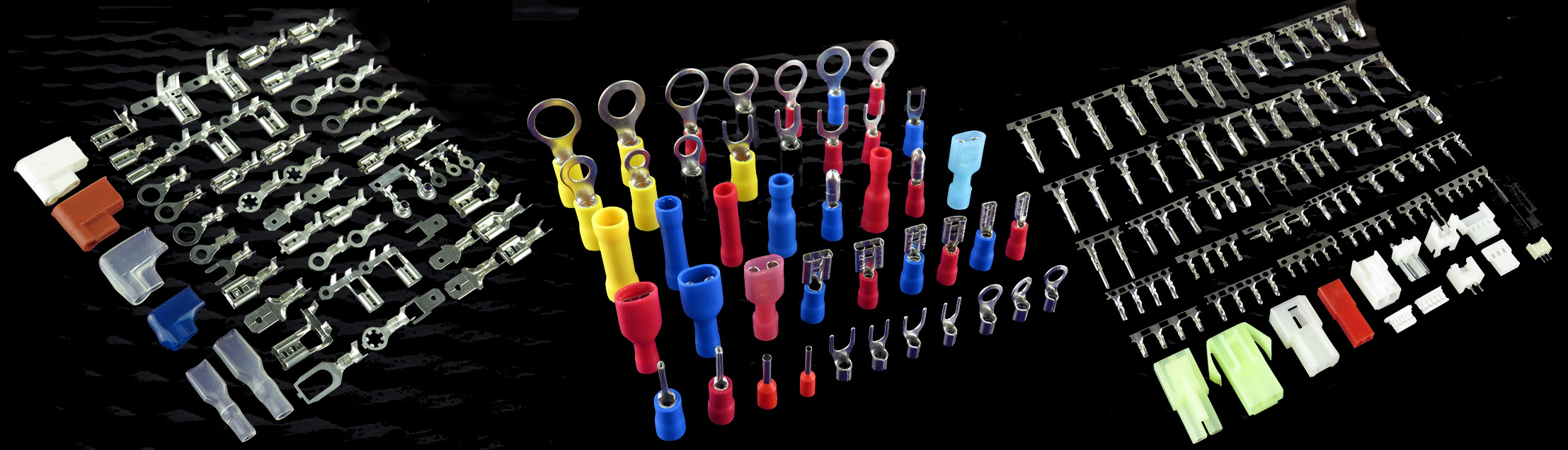

Common Terminal Connectors

UL Listed 12AWG Power Harness, one end is original KST terminals, the other cable end is tinned. Both the two cable ends can be connected with other terminals or housings, such as Original MOLEX, TE housing grounding rings terminals, O ring connector, fork with heat shrink or nylon insulated etc.

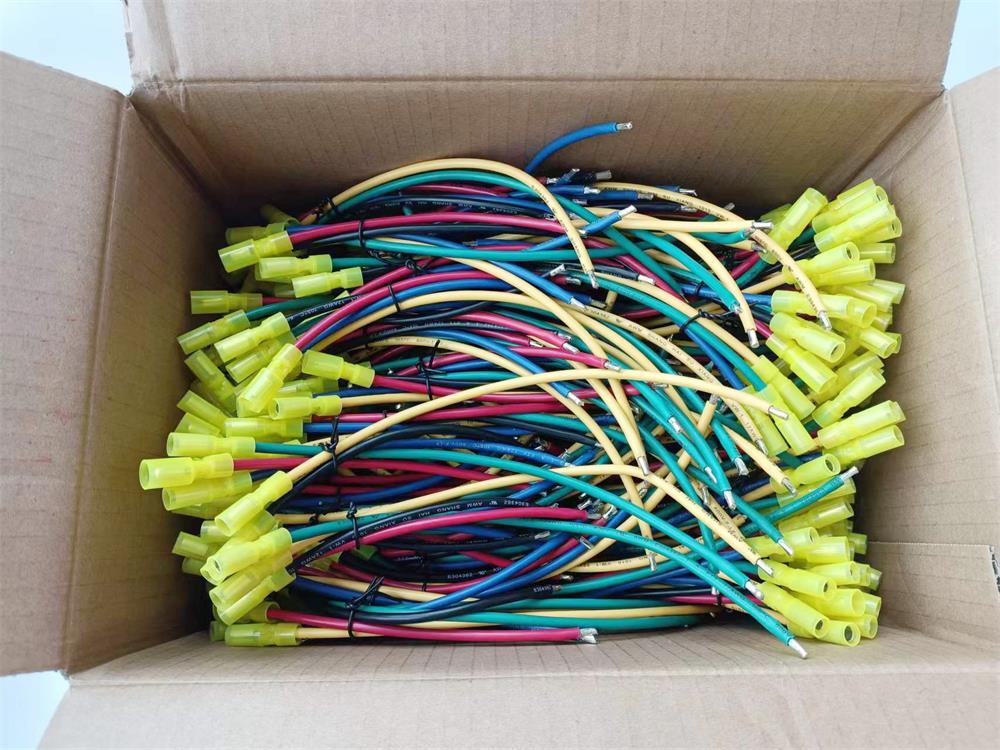

12AWG Wire Harness bulk packed with export cartons, pallets.

Independent packing also available, such as each set packed in poly bag.

Pack in Carton 12AWG Wire Harness

pallet packing

Superline manufacturers and supplies electrical wiring harness for use in USA, Canada,  Mexico, Central America, Malaysia, Philippines, and all countries in the world. We can use UL listed, VDE, CCC approval electrical wire, Molex, TE, KST original terminals & housing, or local branded connectors for the wiring harness. Contact us now to build a brighter future together!
