UL 1015 Stranded Tinned Copper 14AWG Hook-Up Wire with KST FRD2-156 KST MPD2-156 Male Female Bullet Crimp Wiring Harness Assembly Power Harness To Tinned Cable End

Share to:

UL 1015 Stranded Tinned Copper 14AWG Hook-Up Wire with KST FRD2-156 KST MPD2-156 Male Female Bullet Crimp Wiring Harness Assembly Power Harness To Tinned Cable End

MOQ: 50pcs.
Sample Time: 3-5 Days, Free with freight collected.
Production Time: 10-15 days depends on order QTY.
Price Terms: FOB, EXW, CIF, C&F, DDP etc.
Shipping Terms: By Sea, Air, Express, door to door service.
Payment Terms: Wire Transfer, PayPal, Credit Card.
Packing: Polybag, Master Export Cartons, Pallets, or Custom.

Availability:

Specification

UL 14AWG Wiring Harness

Brand Name: Superline	Model Number: 14AWG Wiring Harness
Approvals: UL	Type: Cable Harness
Application: Industrial, Appliances, Dvices	Male End Type: KST MPD2-156 Male Bullet
Female End Type: KST FRD2-156 Female Bullet Crimp	Cable type: UL 1015 14AWG
Conductor: Stranded Tinned Copper	Plug: KST MPD2-156 Male Bullet, KST FRD2-156 Female Bullet Crimp
Terminal Material: PVC, Nylon, PE, etc.	Blade Material: Nickel coated Brass
Cable Ends: Tinned, Peeling off, ROJ, Stripped, Terminals, or custom	Insulation: PVC, Rubber, TPE, XLPE, Textile
Color: Black, Red, Green, Yellow, Blue, or other color can custom	Length: any length can be customized
Rated Current & Voltage: 15A, 125V~	Environmental Certifications: RoHS, REACH, PAHS
Quality System: ISO9001:2015

5PCS Wiring Harness Kit

4 * KST FRD2-156 Female Bullet Crimp to Tinned End Wiring Harness

1 * KST MPD2-156 Male Bullet to Tinned End Power Harness

Tinned end 14AWG Wire Harness

Product Name	UL Listed Wiring Harness
Category	Wiring Harness
Brand Name	Superline
Model	14AWG Wire Harness Assembly
Conductor	Stranded Tinned Copper
Insulation	environmental-friendly PVC, Rubber etc.
Plug	4 * KST FRD2-156 Female Bullet Crimp 1 * KST MPD2-156 Male Bullet
Cable end	Tinned, Stripped, ROJ, with O ring terminals, or customized
Cable type	UL1015, UL1007, UL1569, UL1061, TXL 10AWG, 12AWG, 14AWG 16AWG, 18AWG, 20AWG, 24AWG, 26AWG
Color	Black, Red, Green, Yellow, Blue, or other color can custom
Rated Current&Voltage	15A 125V
Length	125mm-207mm, can custom as per drawing
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Flamability Rating:	UL 94V-0
Temperature Rating:	Terminal Connector: 60-75°C Electrical Wire: 105°C
Application	Household, Commercial, Industrial Applications, Devices, Appliances
Applicable Country	USA, Canada, Mexico, Central America, Malaysia, Philippines, Worldwidely
MOQ	50pc
OEM	5000pcs

This Wiring Harness Kit is customized for client. The wire length is produces as per the datasheet. The color of hook-up wire is Black, Red, Green, Yellow, Blue, other colors such as White, Orange, Purple, Grey, Brwon, Yellow & Green are also available, or can custom color for clients. The wire for the harness kit is UL1015, other electrical wire UL1007, UL1569, UL1061, TXL etc. are also available. The cable gauge is 14AWG, we also can do 10AWG, 12AWG, 16AWG, 18AWG, 20AWG, 24AWG, 26AWG etc.

14AWG Wiring Harenss datasheet

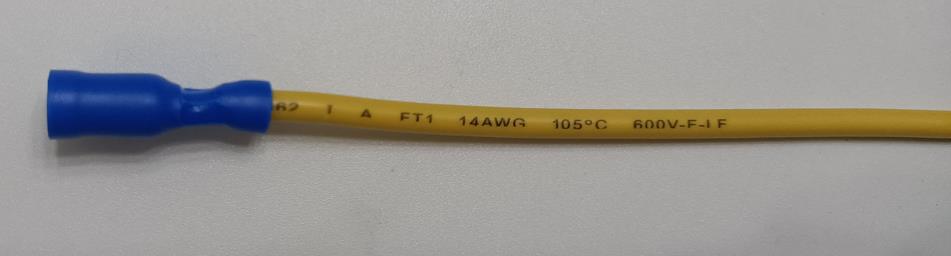

UL 1015 14AWG mark on cable

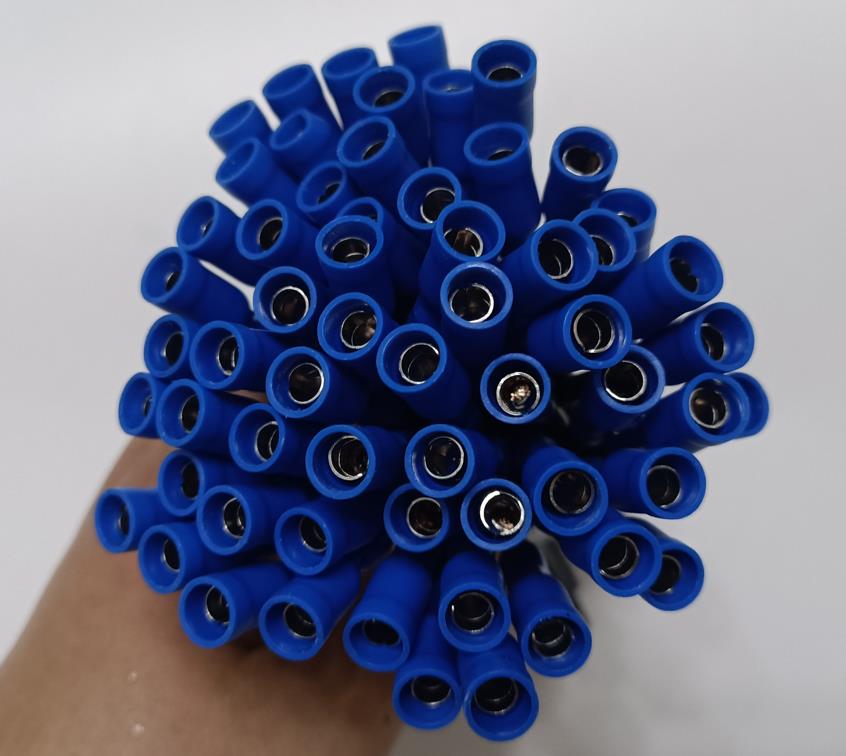

KST FRD2-156 Female Bullet Crimp

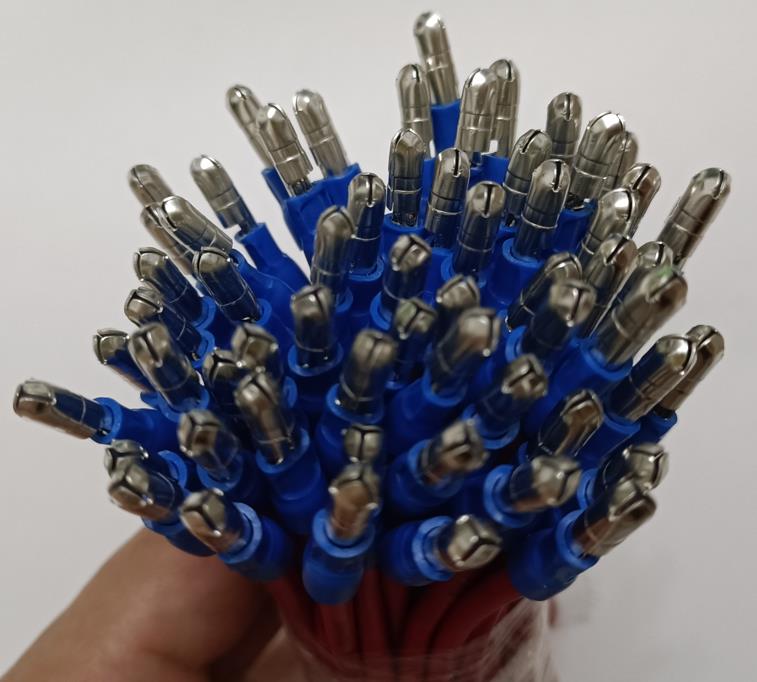

KST MPD2-156 Male bullet Terminal

Available Opposite End

Normal Stripped, Splitter and ROJ

Suplerline focuses on the high-quality production of Wire Harness Assembly, Cable Assembly.

Cable type, color, cable end can be custom.

end-stripped

Cable-ROJ

Common Terminal Connectors

UL Listed 14AWG Power Harness, one end is original KST terminals, the other cable end is tinned. Both the two cable ends can be connected with other terminals or housings, such as Original MOLEX, TE housing grounding rings terminals, O ring connector, fork with heat shrink or nylon insulated etc.

Terminals

Packing

14AWG Wire Harness bulk packed with export cartons, pallets.

Independent packing also available, such as each set packed in poly bag.

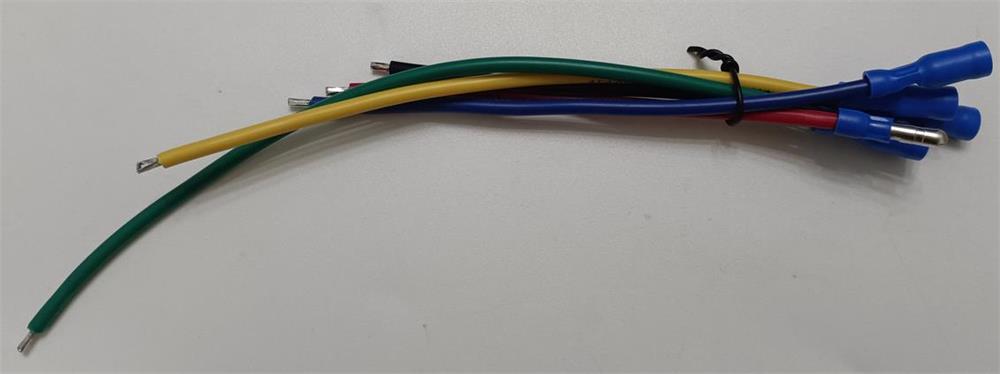

5pcs set packing

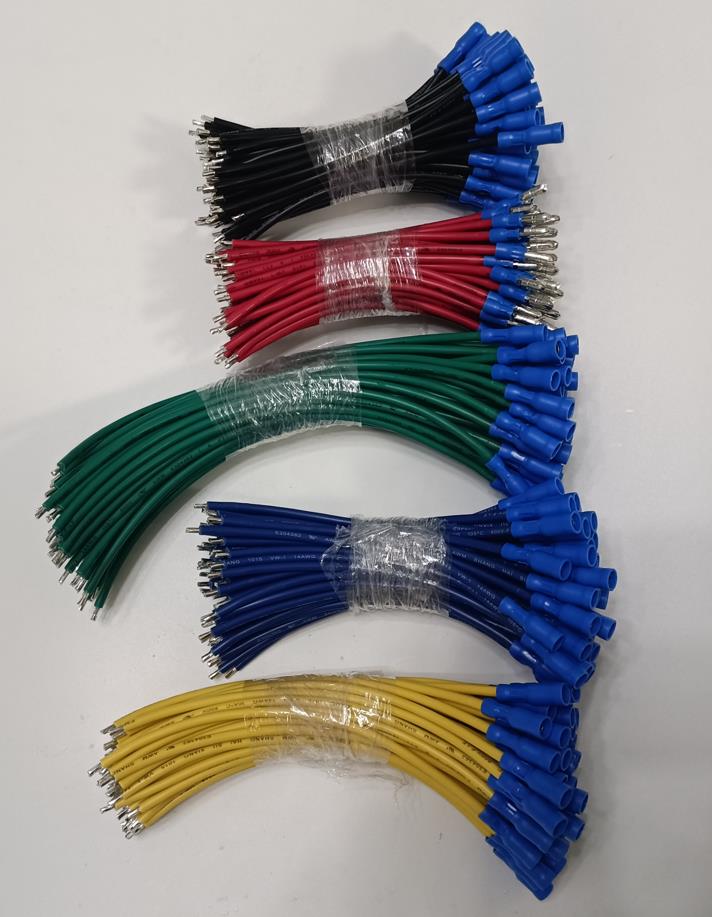

Bulk Packing

pallet packing

Superline manufacturers and supplies electrical wiring harness, power harness, wiring loom for use in USA, Canada, Mexico, Colombia, Costa Rica, Central America, South America, Malaysia, Philippines, Asia, Europe, United Kingdom and all countries in the world. We can use UL listed, VDE, CCC approval electrical wire, Molex, TE, KST original terminals & housing, or local branded connectors for the wiring harness. Contact us now to build a brighter future together!
